FACIT   CM2-16

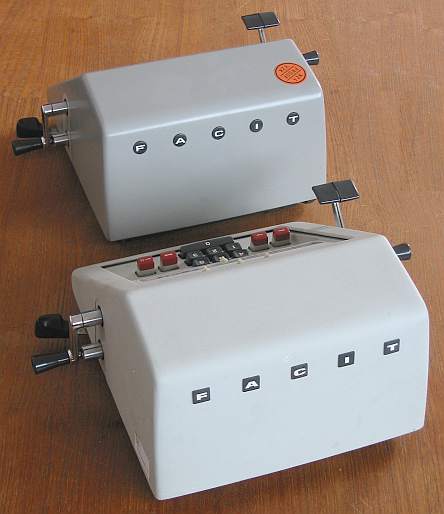

The NEW VERSION in front has a brighter colored case
and the F-A-C-I-T LETTERS on the back side are squares

T E C H N I C A L   D A T A   of the  Mechanical Calculator   FACIT CM2-16
                             Restoration for the » ENERGIE-MUSEUM BERLIN «

Serial Number(s):    A-1467142 (=Label outside) 903665 (=Engraving inside)

Dimensions:   (ca.)  Width   =  13_1/2" /  34 cm
                     Depth   =  11    " /  28 cm
                     Height  =   6_1/4" /  16 cm

Weight:       (ca.)  17_1/2 lbs  /  8 kg

Mechanics:           10-Keyboard (DALTON type)
                     Serial-to-parallel conversion with
         Principle:  Pin-Wheel / Sprossenrad
           Special:  FACIT's Solution
                     10s Carry Mechanism

Functions:           Add, Subtract, Multiply, Divide
                     Double Back-Transfer / Rueckuebertragung

Registers:             I  Input       =  11 Decimals
                      II  Counter     =   9 Decimals
                     III  Arithmetic  =  16 Decimals
                     FACIT GMBH

H O W   T O   U S E    the  FACIT CM2-16

             See Chapter  » FACIT CM2-16 «  ...

R E M A R K S   T O   R E S T O R A T I O N  ...
The FACIT was jammed:  Keys were pressed down with forces at the same time
as the crank was turned - OhOh! - Prevent calculators from (bad) visitors!
To make the FACIT working again,  "Layers of Levers"  had to be removed,
re-bent, cleaned, oiled, ...   Finaly assembled:  All works well again!
