L A S I C O

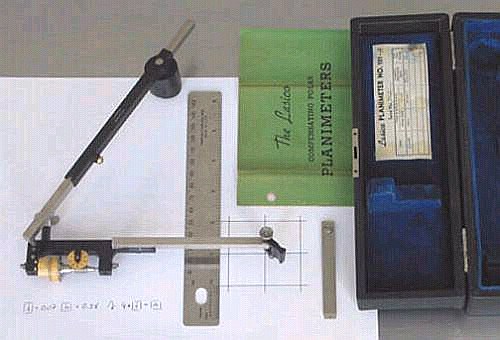

COMPENSATING  POLAR  PLANIMETER



T E C H N I C A L   D A T A                 of the LASICO PLANIMETER
--------------------------------------------------------------------
Model 121-A   LOS ANGELES SCIENTIFIC INSTRUMENT CO./ USA   SN = 3419

Length = 8_1/4 "                  Unit of 0.015 sq.inch on scale 1:1
Adjustable Pole Arm ca. 7_1/2 "    Adjustable Tracer Arm ca. 6_1/4 "

Experimental  D E C I M A L  Calibration:
=========================================
Pol Arm    = 7_1/2" ( = const. Length )
Tracer Arm = 16.5   ( = Scale Setting ) = 168 mm ( = actual Length )
Vernier    = 1.000    = 100 sq.cm

Hypothesis about the odd LASICO Constant = 15 sq.inch
=====================================================
Because  4" * 4" = 16 sq.inch  is nearly  10 cm * 10 cm = 100 sq.cm
a "decimal calibrated" (German) PolarPlanimeter could be used and
"re-calibrated" for US inches by modifying the lenght of P./T.Arms

                     THEORY OF PLANIMETERS
